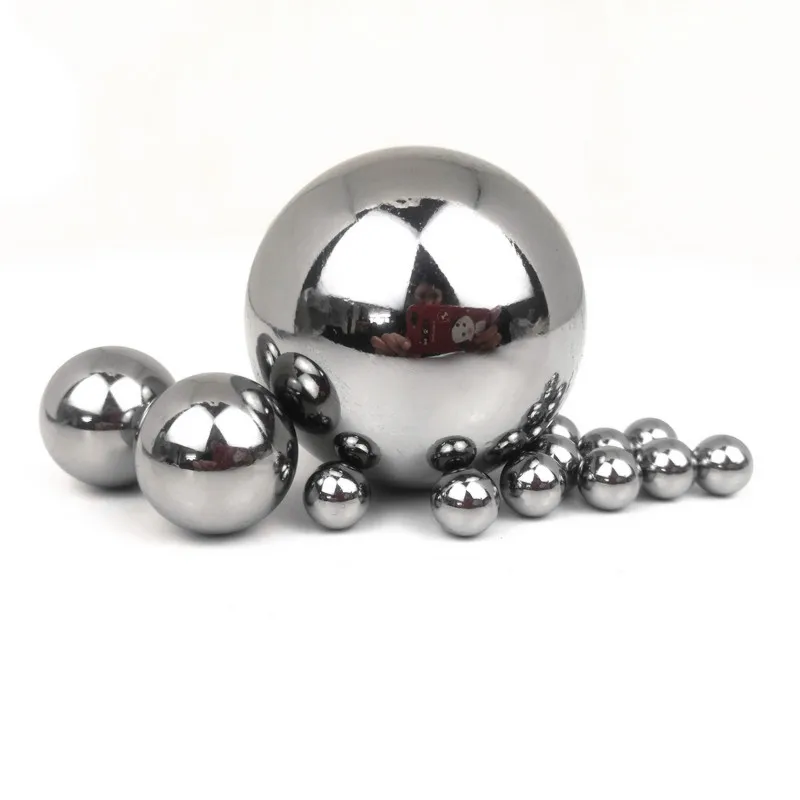

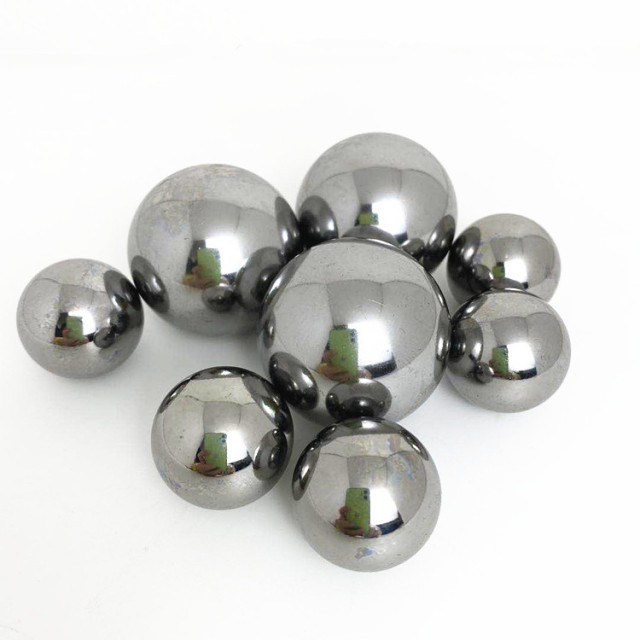

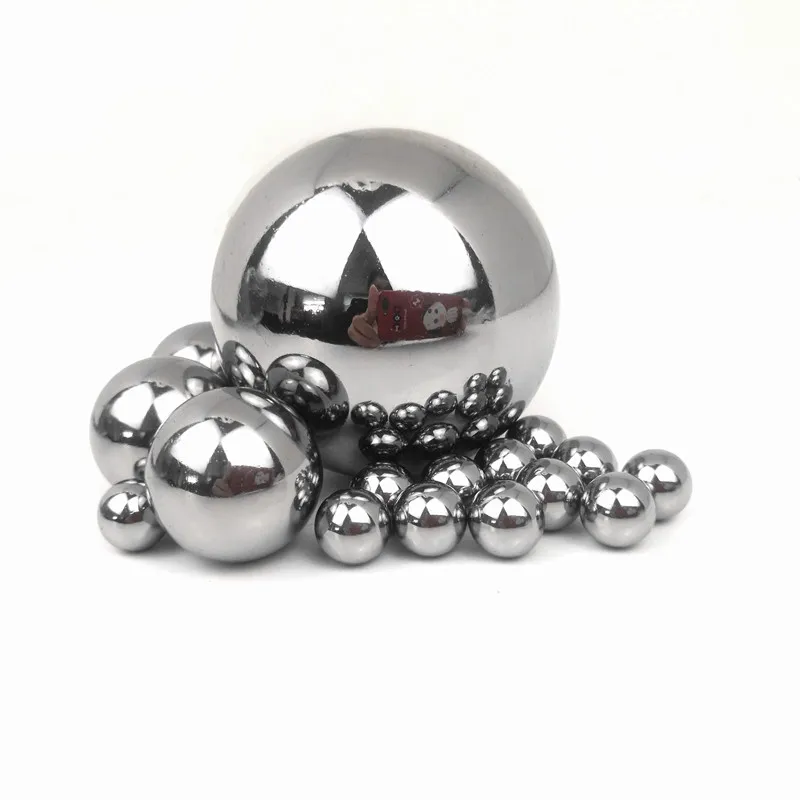

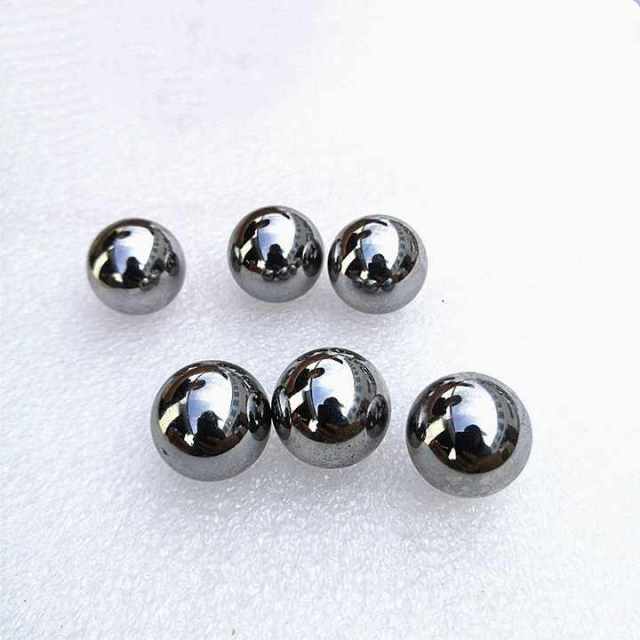

316 grade 100 stainless steel ball bearings are commonly used in trigger sprayer bearings, dispenser valves, body jewelry, lotion pumps, quick-disconnect couplings, and aerospace applications. Type 316 stainless steel, also known as marine or surgical stainless steel, exhibits high corrosion resistance and pitting resistance in corrosive environments exposed to acidic compounds, chemicals, salt water, and chlorides. 316 stainless steel precision ball bearings are widely used in the food, fruit, and brewing industries, as well as marine and medical applications. Stainless steel 316 is tough, but it can be machined, drilled, and threaded with moderate difficulty.
Excellent corrosion resistance, good oxidation resistance, high resistance to pitting and crevice corrosion, excellent durability, non-hardening after heat treatment, solution annealing, excellent weldability, excellent formability, forgeability, excellent toughness, ductility, cold workability, and extremely low magnetic properties.
Precision ball bearings, dispensers and aerosol valves, wash pumps, locking mechanisms, agitators, animal feeders, trigger sprayers, finger pump mechanisms, food processing and medical applications, breweries.
Refer to our "Stainless Steel Guide" Used for grades, shapes, and various attributes.
Product Details:
AISI type 316 stainless steel balls exhibit excellent corrosion resistance and resistance to sulfuric acid compounds. This austenitic steel contains 2-3% molybdenum. Type 316 balls are used in trigger sprayers, bearings, dispenser valves, body jewelry, emulsion pumps, quick-disconnect couplings, and aerospace applications. Type 316LVM balls are used in jewelry, implants, and other medical applications.
AISI 316 | |
Size range | 0.50 mm (.020") to 2" |
grade | 50, 100, 200, 500, 1000, 2000 |
chemical composition | |
chromium | 16%-18% |
carbon | 0.08% MAX. |
nickel | 10%-14% |
manganese | Maximum 2%. |
silicon | Maximum 1%. |
PHOSHOROUS | 0.045% MAX. |
sulfur | 0.03% MAX. |
molybdenum | 2%-3% |
Mechanical properties | |
tensile strength | 80,000 to 120,000 PSI |
Yield strength | 45,000 PSI |
Elongation at two inches | 10%-15.0% |
Area reduction | 55.0%-65.0% |
elastic modulus | 28,000,000 PSI |
density | 288 lbs per cubic inch. |
Physical characteristics | |
Corrosion resistance | excellent |
magnetic | No |
Product Name | 316L stainless steel ball (Ocr19Ni12MO2) | |||||||
Specification | Φ0.5mm-Φ50.8mm | |||||||
grade | G100-G1000 | |||||||
feature | Austenitic steel is best suited for industries with high corrosion resistance. It has a hardness of 28 degrees or less, is non-magnetic, and has strong rust resistance. | |||||||
application | Valves, perfume bottles, medical equipment, nail polish bottles, cosmetic packaging, air conditioners, and other household appliances. | |||||||
chemical composition | C | Ni | Si | M n | P | S | Cr | Mo |
<= 0.08 | 12.0-15.0 | <= 1.0 | <= 2.0 | 0.045 | 0.03 | 16.0-18.0 | 2.0-3.0 | |
1. Made of magnetic material, it has a higher passability than other stainless steel balls.
2. AISI440C stainless steel balls are highly resistant to corrosion from water, steam, oil, gasoline, and alcohol.
3. The ball is blunt.
4. International Standards: X105CrMo17 / 440C / 1.4125 / Z100CD17 / 95X18 / 9Cr18Mo / SUS440C
Yuncheng Kangdaer Steel Ball Co., Ltd.
1. Established in 1998. (and) 20 years of experience In terms of production and marketing.
2. Possess SGS/ROHS Certificate , Guarantee and an excellent management team.
3. Advanced production and testing equipment .
4. Fixed assets exceeding 10 million RMB .
5. The above technical personnel 10 years of production experience e.
6. Our warehouse is located in a national AAAAA-level logistics park. Large inventory, fast delivery .
7. 40% domestic market Based on sales volume.
8. High reputation, with a large number of customers from all over the world.
We sincerely look forward to establishing partnerships with any client at any time.
1. Title:

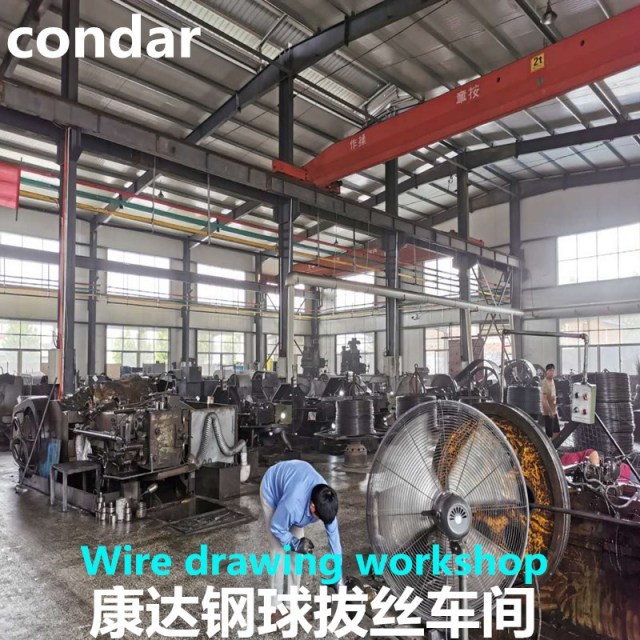

The first step is for the tunneling machine to cut the wire into short lengths and form a sphere between the molds.
2. Flickering:
A process for roughening a spherical blank and removing excess material around the sphere.
3. Heat treatment:
The ball is hardened by subjecting the alloy metal to controlled heating and cooling to improve its hardness and other properties.
4. Difficult trials and tribulations:
Slow and meticulous grinding ensures proper dimensions and size;

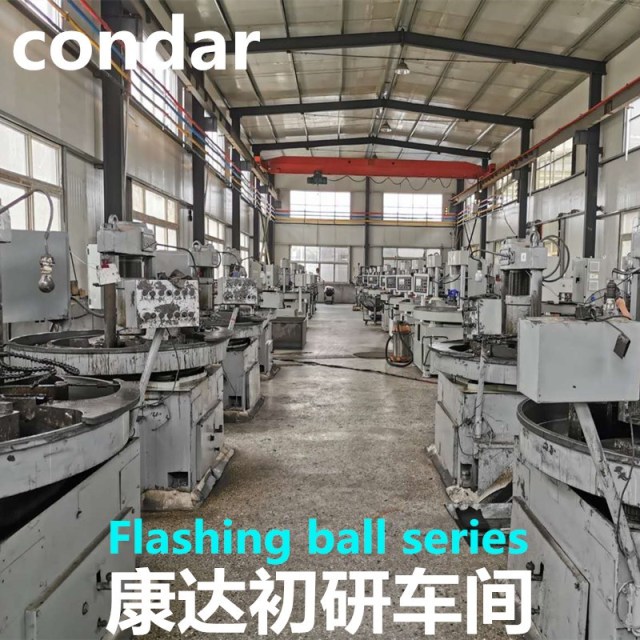

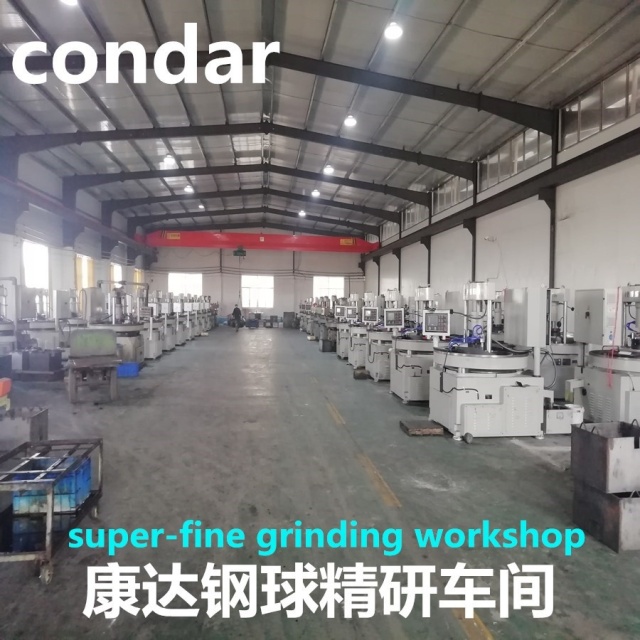

5. Grinding:
This process involves two steps: first, simple grinding, and then fine grinding. Both steps are to achieve a shiny finish and the precise dimensions required by ISO 3290 standards.
6. Cleaning:
First, clean the surface of the ball; then dry the ball with dehydrating oil; the final step is to apply rust-preventive oil to the ball. Once these steps are complete, each ball will be selected by machine or visually to ensure that each ball is perfect.
7. Inspection:
Each batch of products will be measured and inspected by a special inspector to check whether the products meet the customer's requirements.

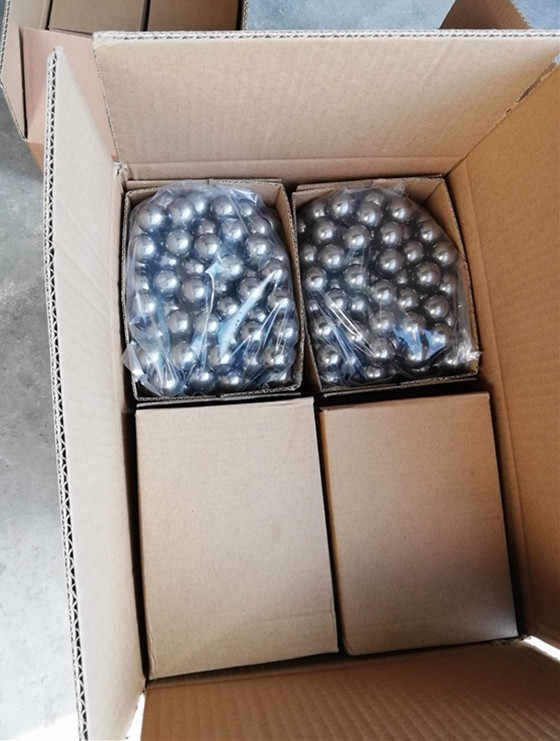

8. Packaging:
These balls are wrapped in antioxidant or oiled paper, packed in a fixed number of standard-sized cardboard boxes, and finally placed in wooden crates or boxes. The packaging will be suitable for both sea and air transport. Special packaging is available upon request.
Delivery time e : 20 business days after receiving the deposit.

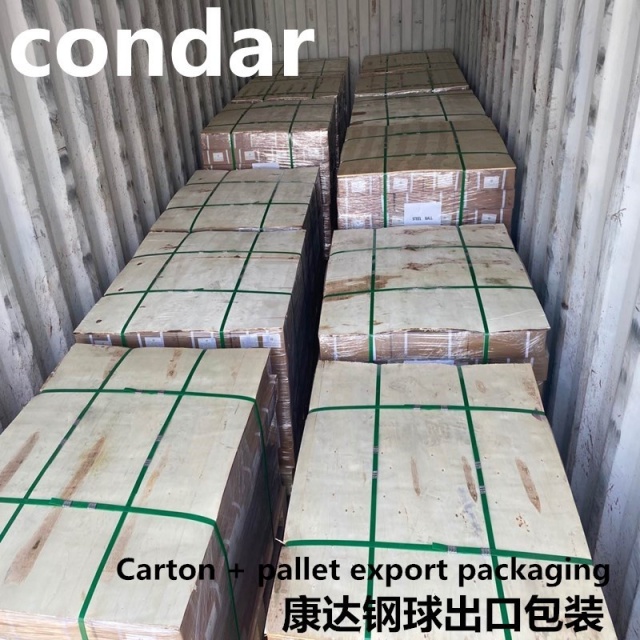

Package: 1. Commercial Packaging: Plastic bag + Color box + Carton + Pallet
2. Industrial Packaging: a) Plastic + Steel Drum + Pallet;
b). Plastic + woven bag + wooden cardboard box;
3. According to the customer's requirements.
Q1. What are your packaging terms?
answer: Typically, we pack goods in bulk or wooden crates, suitable for shipping containers.
Q2. What are your payment terms?
answer: T/T 30% as deposit, and 70% before delivery.
Before you pay the balance, we will show you photos of the product and packaging.
Q3. What are your terms of delivery?
answer: EXW, FOB, CFR, CIF.
Fourth quarter. How about your delivery time?
answer: Typically, it takes 10 to 15 days after receiving the prepayment.
Q5. Can you produce based on samples?
answer: Yes, we can produce according to your samples or technical drawings.
Q6. What is your example policy?
answer: If we have parts in stock, we can provide samples.
Q7. Do you test all your goods before delivery?
answer: Yes, we conduct 100% testing before delivery.
Q8. How do you build long-term, positive relationships within our business?
A1: We maintain excellent quality, attentive after-sales service, and competitive prices to ensure our customers' interests.
A2: We package the goods in bulk or woolen boxes, suitable for shipping containers.
1. As a manufacturer and trading company, we are able to integrate the best resources in China and provide qualified parts to our customers at the most competitive prices.
2. Quality Assurance: 100% QC inspection before delivery; ISO9001:2008 and SGS certification; full refund or replacement for quality defects; 90-day quality warranty on all products.
3. Excellent customer service, responding within 24 hours.
4. Fast delivery: We have a large inventory ready to ship the day after ordering. For mass production, we can place urgent orders and deliver on time.
5. We offer OEM services and can produce custom parts based on customers' printed materials or samples.
6. With over 10 years of experience, we collaborate with clients worldwide.
7. One-stop service: We can handle everything from production, transportation, import customs clearance, and door-to-door delivery until your order is in your hands.
